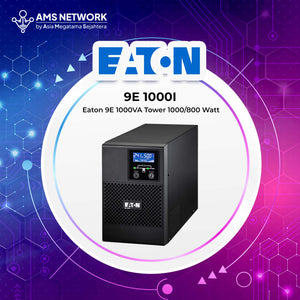

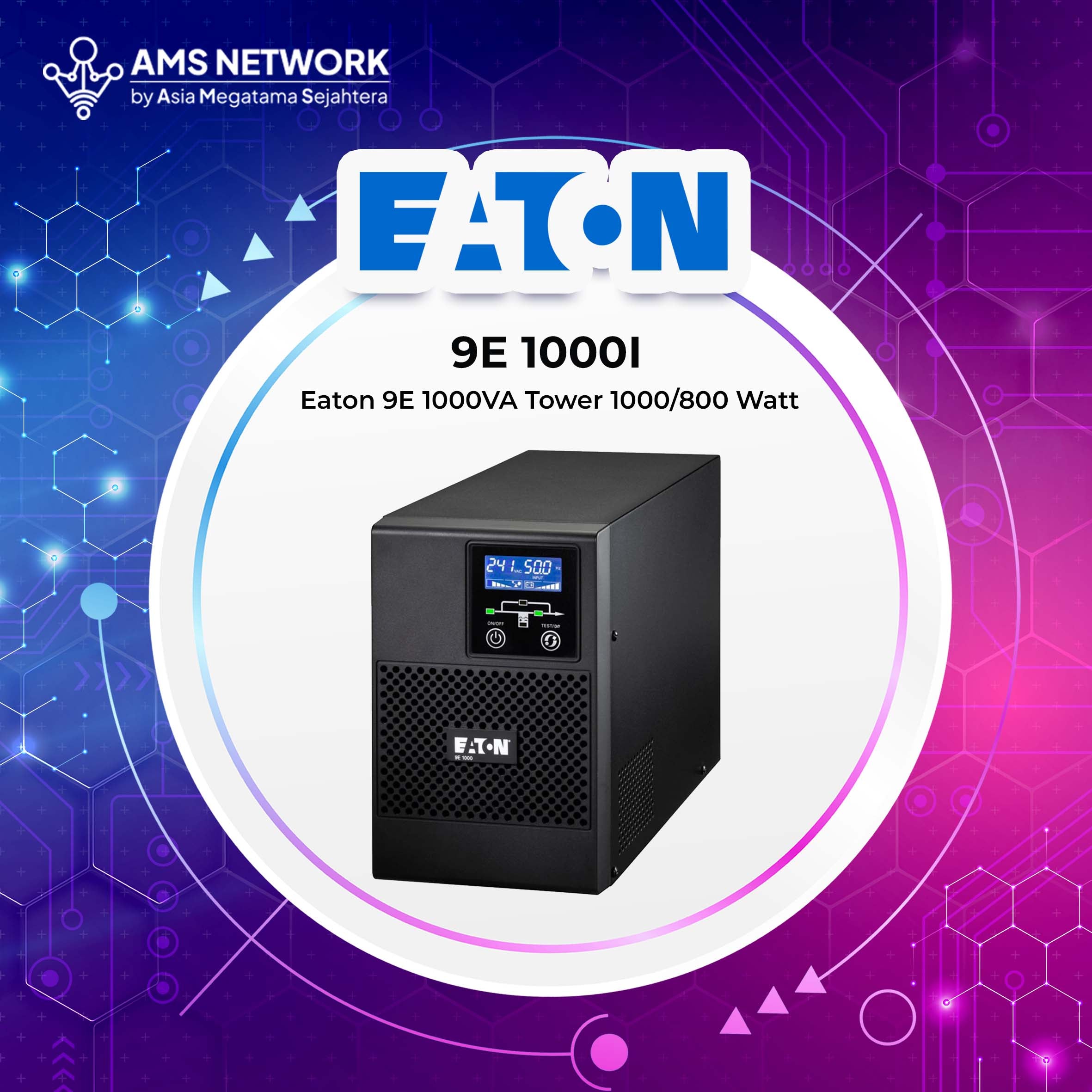

Eaton 9E 1000I adalah Uninterruptible Power Supply (UPS) dengan rating daya 1000 VA/800 W yang dirancang untuk memberikan perlindungan daya tingkat tinggi untuk aplikasi kritis kecil. UPS ini menggunakan topologi Online Double-Conversion (Konversi Ganda Online), yang merupakan standar emas dalam perlindungan daya. Ini berarti perangkat yang terhubung (beban) selalu mendapatkan daya listrik yang bersih, stabil, dan berbentuk Gelombang Sinus Murni (Pure Sine Wave), sepenuhnya terisolasi dari masalah listrik input seperti lonjakan, penurunan tegangan, atau noise.
Dengan desain Tower yang ringkas, 9E1000I sangat cocok digunakan untuk melindungi server, workstation performa tinggi, peralatan jaringan (switch, router), peralatan telekomunikasi, dan aplikasi IT kecil hingga menengah yang memerlukan kualitas daya tak tertandingi.
Fitur khusus:
Isi paket:
Eaton 9E UPS, 1000 VA, 800 W, Input: C14, Output: (4) C13, Tower
| Product Name | Eaton 9E UPS |
| Catalog Number | 9E1000I |
| UPC | 786689166564 |
| Product Length/Depth | 356 mm |
| Product Height | 228 mm |
| Product Width | 144 mm |
| Product Weight | 22.1 kg |
| Compliances | CE Marked TUV |
| Certifications |
IEC/EN 62040-1
IEC/EN 62040-2 CE EAC |
| Topology |
Online/Double-conversion
|
| Form factor | Tower |
| Construction type |
Free standing model
|
| Color | Black |
| VA rating | 1000 VA |
| Wattage | 800 W |
| Rack mounting kit | No |
| Internal bypass | Yes |
| Hot swap power | No |
| Auto shutdown function | Yes |
| Primary frequency - max | 70 Hz |
| Primary frequency - min | 40 Hz |
| Input connection | C14 |
| Input nominal voltage |
230V default (220/230/240V)
|
| Nominal frequency | 50/60 Hz |
| Input frequency range | 40-70 Hz |
| Input power factor | >.99 |
| Receptacle | (4) C13 |
| Number of Outputs C13 | 4 |
| Output waveform | Sine wave |
| Voltage | 230V |
| Output nominal voltage |
230V default (220/230/240V)
|
| Feed type | 1 |
| Voltage type | AC |
| Runtime graph | |
| Battery management |
Automatic battery test
Deep discharge protection |
| Battery replacement |
Replacable batteries
|
| Battery rating | 12 V / 9 Ah |
| Battery type |
Sealed, lead-acid
|
| Extended battery capability | Yes |
| Runtime at half load | 11.5 min |
| Communication |
USB port (HID compliant)
Serial port (RS232) Communication slot |
| Expansion slots |
One slot for optional communication card
|
| Ethernet interface | No |
| Includes network card | No |
| Software compatibility |
Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
|
| User interface | LCD Display |
| Type of interface | Other |
| Potential free switch contact | No |
| Altitude | 3000 m |
| BTU Rating | Online: 300 |
| Noise level |
<37 dB at 1 meter
|
| Relative humidity |
0-95% non-condensing
|
| Temperature range |
0° to 40°C (32° to 104°F)
|
| Input voltage - max | 300 V |
| Input voltage - min | 100 V |
| Output voltage - max | 240 V |
| Output voltage - min | 220 V |
| Secondary frequency - max | 60 Hz |
| Secondary frequency - min | 50 Hz |
| Battery quantity | 2 |
| Efficiency at max. load | 94 |
| Efficiency (eco-mode) | 97 |
| Input voltage range |
176-300 V (100 V-300 V with derating)
|
| Output frequency | 50/60 Hz |
| Output power factor | 0.8 |
| Output voltage range |
220/230/240 V +/- 2%
|
| Phase (input) | 1 |
| Phase (output) | 1 |
| Runtime at full load | 5 min |
| Voltage distortion output (linear load) - max | 3 |
| Power consumption | 98.9 W |
| Vendor | PT. ASIA MEGATAMA SEJAHTERA |
|---|---|
| Type | ups |
| Weight | 24.0 kg |
