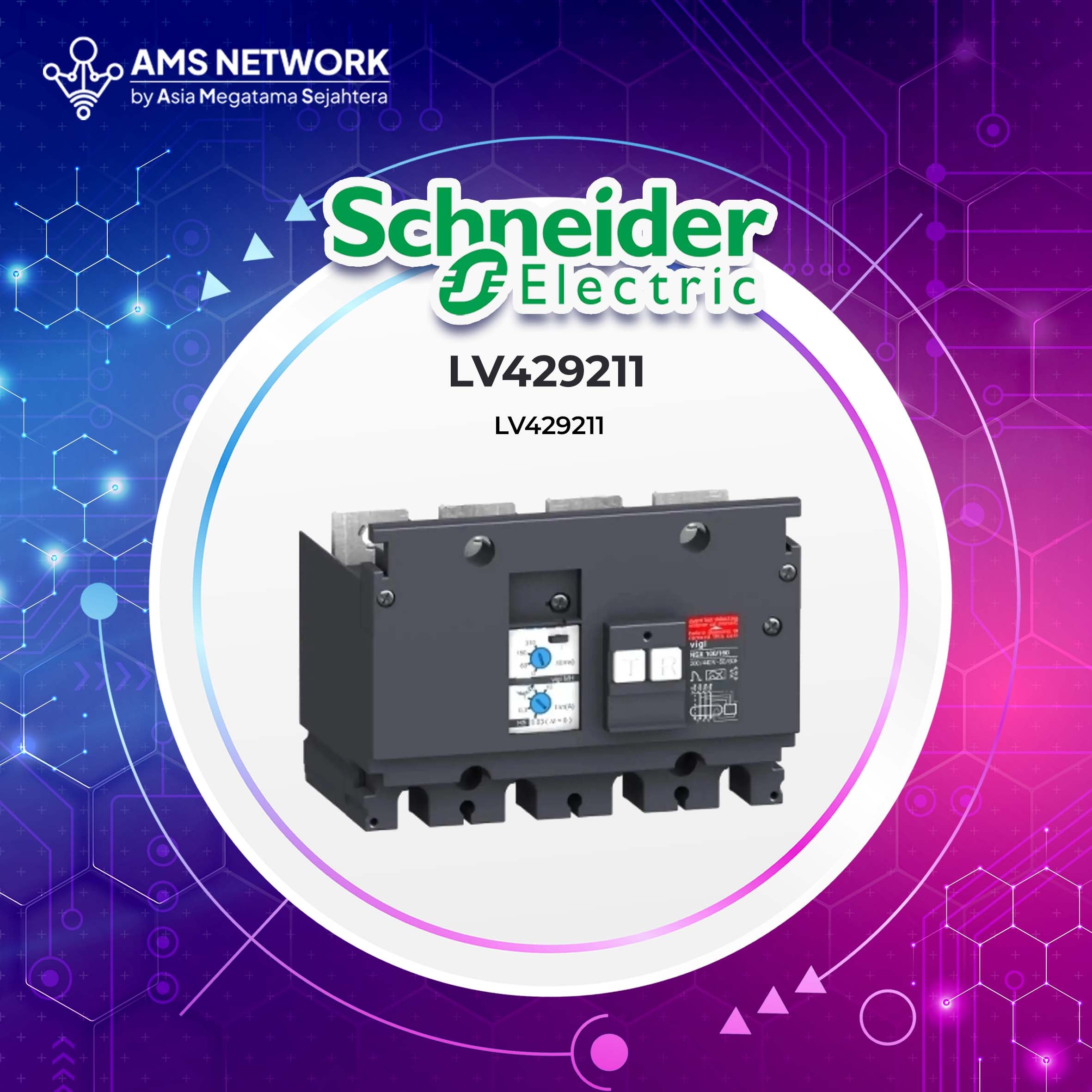

LV429211 - Schneider Electric ComPact NSX LV429211 Vigi add-on MH 200-440 V, 30 mA-10 A, 4 poles 1pc

Rp 10.448.000,00 Rp 15.000.000,00
30
Atau lihat kebijakan pengiriman kami

Tax included. Shipping calculated at checkout.

100 in stock
Delivery:
Estimated delivery time: 5-7 days
Returns:
Within 45 days of purchase
Sku:
5
Payment & Security
Visa Mastercard American Express PayPal Diners Club Discover

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Note: Harga Belum Termasuk PPN 11%



Deskripsi Schneider Electric LV429211 ComPact NSX Vigi add-on MH 200-440 V

Modul tambahan Vigi MH ini untuk Compact NSX 100/160 4 kutub dan EasyPact CVS 100/160. Modul ini memberikan perlindungan kebocoran arde saat dipasang langsung pada terminal perangkat. Modul ini langsung mengaktifkan unit trip jika terjadi kerusakan isolasi.

Penambahan modul tambahan Vigi ini tidak mengubah karakteristik Compact NSX 100/160 atau EasyPact CVS 100/160. Modul ini merupakan modul tipe MH dengan versi 4 kutub, yang beroperasi secara mandiri berdasarkan tegangan input. Tegangan operasional untuk modul tambahan Vigi berkisar antara 200VAC hingga 440VAC 50/60Hz.

Sensitivitasnya dapat disesuaikan dari 30mA hingga 10A, dan waktu tundanya juga dapat disesuaikan. Dimensi pemutus sirkuit yang dilengkapi dengan modul ini adalah 140mm x 236mm x 86mm.



Spesifikasi Schneider Electric ComPact NSX LV429211 Vigi add-on MH 200-440 V

Range of product ComPact NSX100...250
Range ComPact
Product or component type Vigi add-on
Device application Wiring
Range compatibility ComPact NSX100 circuit breaker
ComPact NSX160 circuit breaker
EasyPact CVS100 circuit breaker
EasyPact CVS160 circuit breaker
Poles description 4P
[In] rated current 160 A
100 A
Earth-leakage add-on module name MH
Earth-leakage protection class Class A
Residual earth-leakage sensitity adjustment type Adjustable 5 settings
Earth-leakage sensitivity 0.03 A
0.3 A
1 A
3 A
10 A
Residual earth-leakage time delay adjustment type Adjustable 4 settings
[Δt] residual earth leakage time delay adjustment 0 Ms
150 Ms
310 Ms
60 ms
Vendor AMS Network
Type electricity
Sku 5
Weight 2.0 kg
