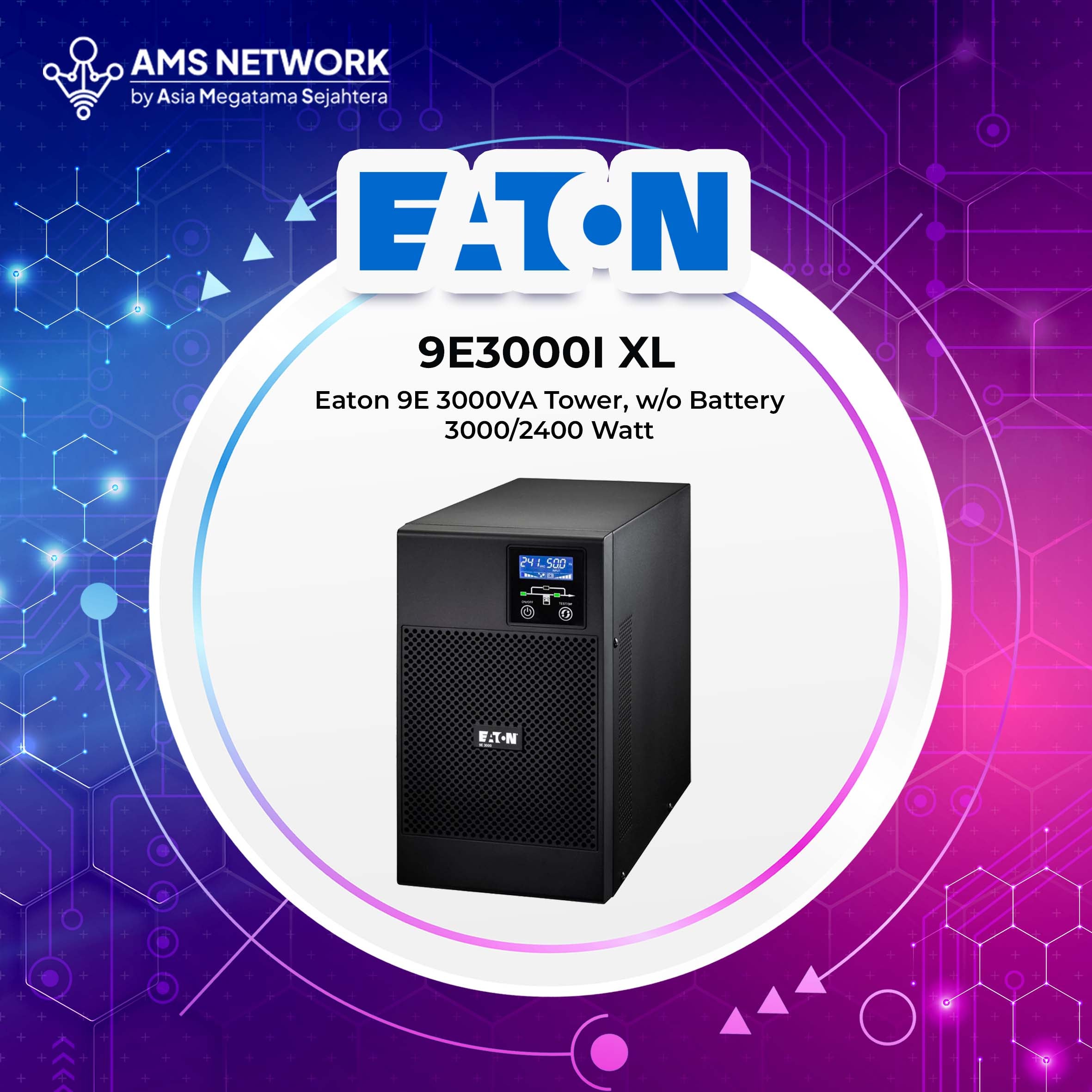

Eaton 9E3000IXL adalah UPS Online Double-Conversion (konversi ganda) fase tunggal dengan kapasitas 3000 VA / 2400 W dalam format Tower (berdiri bebas), Merujuk pada unit Uninterruptible Power Supply (UPS) dengan spesifikasi khusus untuk kebutuhan runtime yang sangat panjang. Model ini adalah solusi tanpa baterai internal (w/o Battery) dengan fitur Online Double-Conversion untuk proteksi daya yang superior.
Sifat utama dari model ini adalah kode "XL" (Extra-Long Runtime) dan fakta bahwa unit ini tidak dilengkapi dengan baterai internal (No Battery). Unit ini dirancang untuk dihubungkan dengan Modul Baterai Eksternal (EBM/External Battery Module) untuk mencapai waktu backup yang jauh lebih lama daripada unit standar.
UPS ini cocok untuk melindungi peralatan penting seperti server, perangkat jaringan, sistem penyimpanan data, dan aplikasi industri yang membutuhkan kualitas daya yang sangat stabil dan durasi backup yang panjang.
Fitur khusus:
Isi paket:
Komunikasi:
Manajemen baterai:
Eaton 9E UPS XL, 3000 VA, 2400W, Input: C20, Output: (6) C13, (1) C19, Tower
| Product Name |
Eaton 9E UPS
|
| Catalog Number | 9E3000IXL |
| UPC | 786689166595 |
| Product Length/Depth | 19 cm |
| Product Height | 33 cm |
| Product Width | 39.9 cm |
| Product Weight | 7.9 kg |
| Compliances | CE Marked TUV |
| Certifications |
IEC/EN 62040-1
IEC/EN 62040-2 CE EAC |
| Spesifikasi produk | |
| Topology |
Online/Double-conversion
|
| Form factor | Tower |
| Construction type |
Free standing model
|
| Color | Black |
| VA rating | 3000 VA |
| Wattage | 2400 W |
| Rack mounting kit | No |
| Internal bypass | Yes |
| Hot swap power | No |
| Auto shutdown function | Yes |
| Primary frequency - max | 70 Hz |
| Primary frequency - min | 40 Hz |
| Input connection | C20 |
| Input nominal voltage |
230V default (220/230/240V)
|
| Nominal frequency | 50/60 Hz |
| Input frequency range | 40-70 Hz |
| Input power factor | >.99 |
| Receptacle |
(6) C13, (1) C19
|
| Number of Outputs C13 | 6 |
| Number of Outputs C19 | 1 |
| Output waveform | Sine wave |
| Voltage | 230V |
| Output nominal voltage |
230V default (220/230/240V)
|
| Feed type | 1 |
| Voltage type | AC |
| Runtime graph | |
| Battery replacement | No battery |
| Extended battery capability | Yes |
| Runtime at half load | 0 min |
| Expansion slots |
One slot for optional communication card
|
| Ethernet interface | No |
| Includes network card | No |
| Software compatibility |
Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
|
| User interface | LCD Display |
| Type of interface | Other |
| Potential free switch contact | No |
| Altitude | 3000 m |
| BTU Rating | Online: 737 |
| Noise level |
<37 dB at 1 meter
|
| Relative humidity |
0-95% non-condensing
|
| Temperature range |
0° to 40°C (32° to 104°F)
|
| Input voltage - max | 300 V |
| Input voltage - min | 100 V |
| Output voltage - max | 240 V |
| Output voltage - min | 220 V |
| Secondary frequency - max | 60 Hz |
| Secondary frequency - min | 50 Hz |
| Battery quantity | 0 |
| Efficiency at max. load | 91 |
| Efficiency (eco-mode) | 97.5 |
| Input voltage range |
176-300 V (100 V-300 V with derating)
|
| Max number of battery packs | 4 |
| Output frequency | 50/60 Hz |
| Output power factor | 0.8 |
| Output voltage range |
220/230/240 V +/- 2%
|
| Phase (input) | 1 |
| Phase (output) | 1 |
| Runtime at full load | 5 min |
| Voltage distortion output (linear load) - max | 3 |
| Power consumption | 237.4 W |
