Tax included. Shipping calculated at checkout.
Pengambilan di toko tidak tersedia

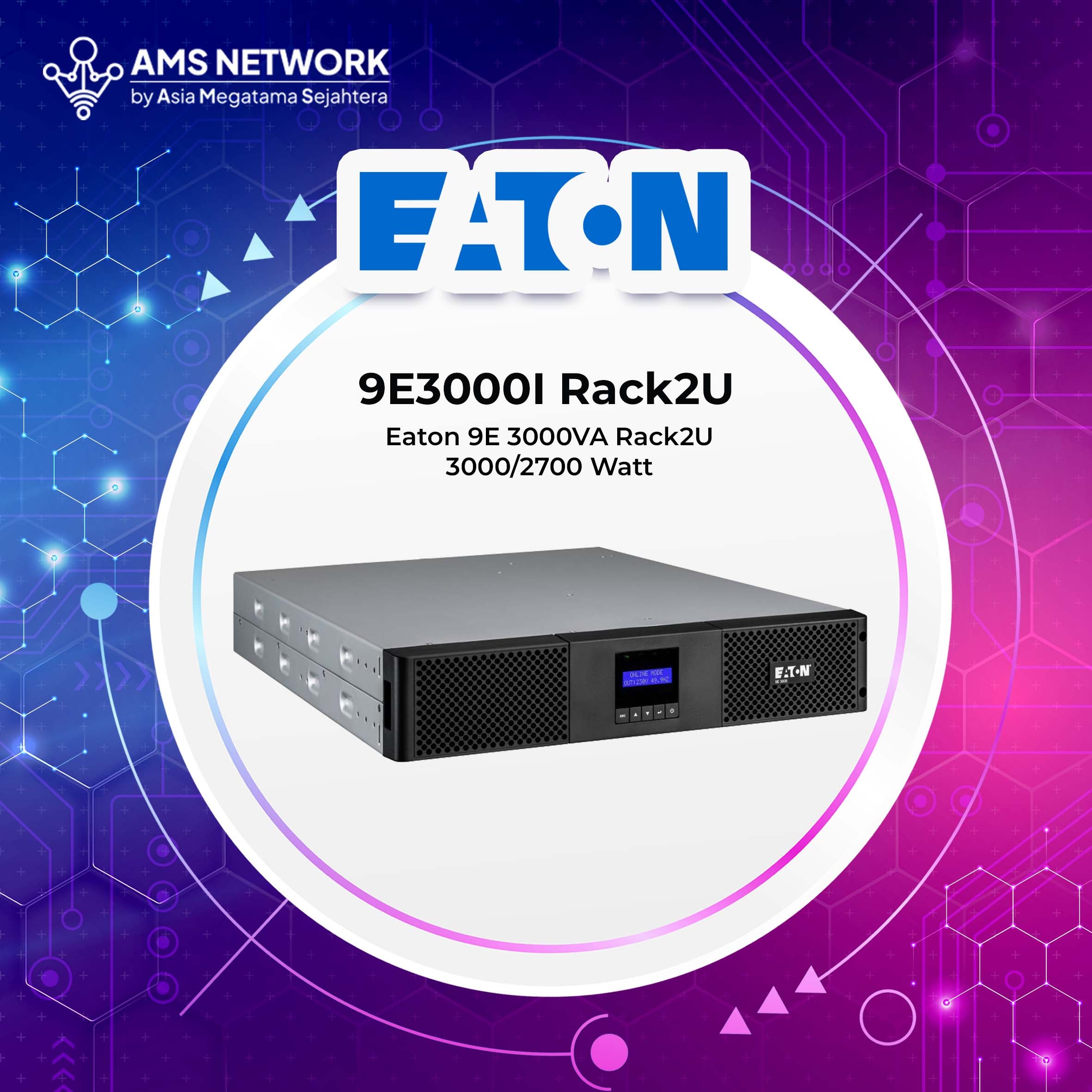

Eaton 9E3000I Rack2U adalah UPS Online Double-Conversion (konversi ganda) fase tunggal dengan kapasitas 3000 VA / 2700 W, dirancang khusus untuk pemasangan di rak server. Fitur utamanya adalah:
Manajemen baterai:
Isi paket:
Eaton 9E UPS, 3000 VA, 2700 W, Input: C20, Outputs: (6) C13, (1) C19, Rack, 2U
| Product Name |
Eaton 9E UPS
|
| Catalog Number | 9E3000IR |
| EAN | 3553340710353 |
| Product Length/Depth | 608 mm |
| Product Height | 86.5 mm |
| Product Width | 438 mm |
| Product Weight | 31.3 kg |
| Compliances | CE Marked TUV |
| Certifications |
IEC/EN 62040-1
IEC/EN 62040-2 CE |
| Battery | |
| Battery type |
Sealed, lead-acid
|
| Runtime graph | |
| Battery replacement |
Replacable batteries
|
| Battery quantity | 6 |
| Battery rating | 12 V / 9 Ah |
| Extended battery capability | Yes |
| Electrical output | |
| Receptacle |
(6) C13 + (1) C19
|
| Voltage | 230V |
| Wattage | 2700 W |
| Output power factor | 0.9 |
| Output voltage range |
220/230/240 V +/- 2%
|
| Output waveform | Sine wave |
| Output nominal voltage |
230V default (220/230/240V)
|
| Voltage distortion output (linear load) - max | 3 |
| Feed type | 1 |
| Topology |
Online/Double-conversion
|
| VA rating | 3000 VA |
| Electrical input | |
| Input connection | C14 |
| Input nominal voltage |
230V default (220/230/240V)
|
| Nominal frequency | 50/60 Hz |
| Input power factor | >.99 |
| Input cord length | 1.8m |
| Input frequency range | 40-70 Hz |
| Communications | |
| Includes network card | No |
| Communication |
USB port (HID compliant)
Serial port (RS232) Mini-terminal block for remote power off |
| Ethernet interface | No |
| User interface |
Multilingual LCD display
|
| Potential free switch contact | Yes |
| Expansion slots |
One slot for optional communication card
|
| Software compatibility |
Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
|
| Type of interface | Other |
| Environmental | |
| Altitude | 3000 m |
| Noise level |
<45 dB at 1 meter
|
| Temperature range |
0° to 40°C (32° to 104°F)
|
| Relative humidity |
0-96% non-condensing
|
|
Additional specifications
|
|
| Construction type |
482.6 mm (19 inch) device
|
| Phase (output) | 1 |
| Internal bypass | Yes |
| Auto shutdown function | Yes |
| Color | Black |
| Efficiency at max. load | 91 |
| Rack mounting kit | Yes |
| Phase (input) | 1 |
| Hot swap power | No |
Note : Harga nett (sudah termasuk PPN), ongkir terpisah
| Vendor | AMS Network |
|---|---|
| Type | UPS |
| Sku | 5 |
| Weight | 32.0 kg |
