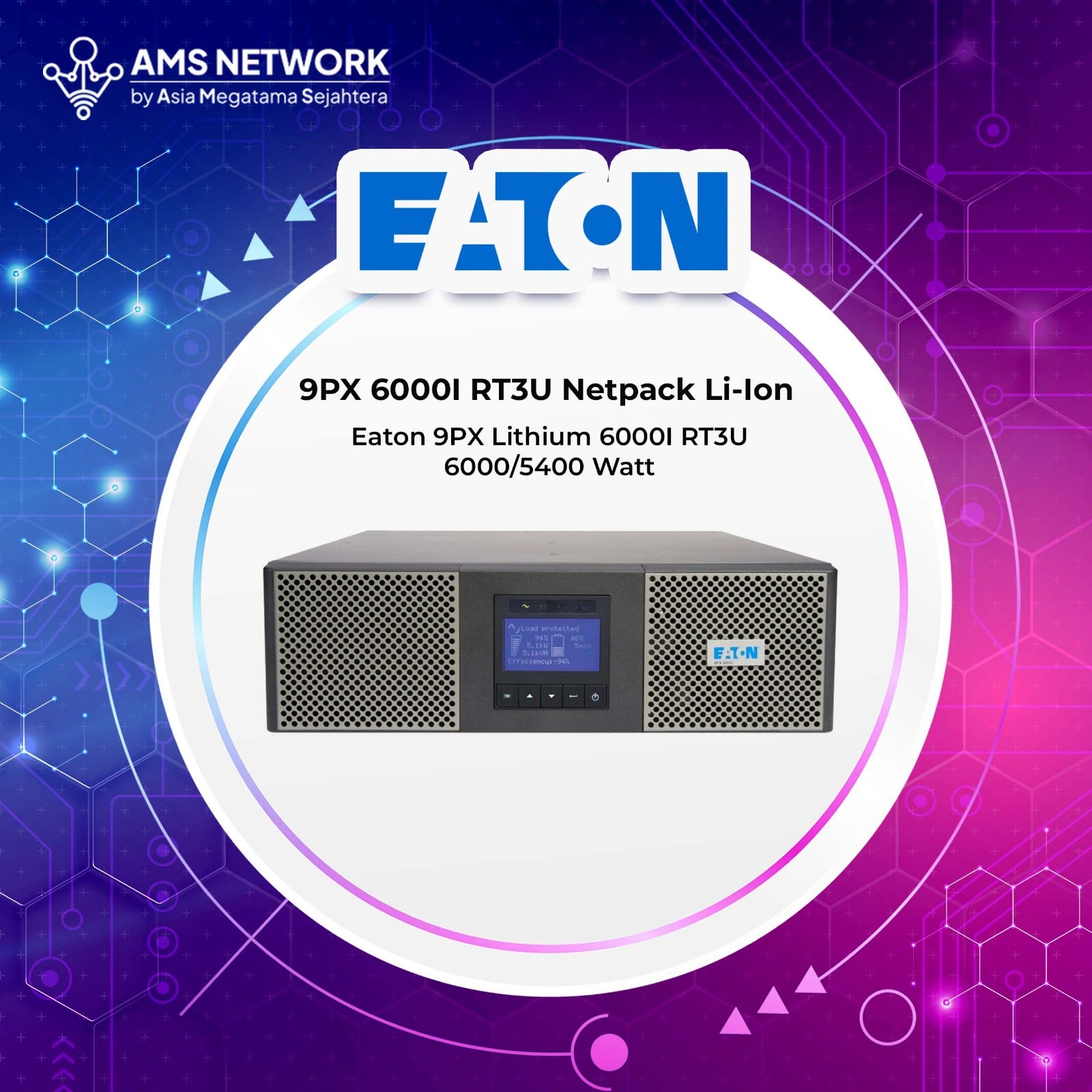

Eaton 9PX adalah UPS rak konversi ganda online yang telah teruji dan terbaik di kelasnya. UPS 9PX dilengkapi teknologi ABM, yang memperpanjang masa pakai baterai hingga 50%, dan menawarkan fleksibilitas dalam jenis baterai dengan sembilan model yang menawarkan baterai litium-ion.
Penggunaan teknologi Lithium-Ion (Li-Ion) adalah fitur pembeda utama. Baterai Li-Ion menawarkan masa pakai yang jauh lebih lama (seringkali dua kali lipat atau lebih) dan bobot yang lebih ringan dibandingkan dengan baterai Valve-Regulated Lead-Acid (VRLA) tradisional, menjadikannya investasi jangka panjang yang efisien dan andal.
cocok untuk Aplikasi: TI, jaringan edge, medis/perawatan kesehatan, universitas, sekolah, otomasi industri, lingkungan kelistrikan yang keras, pengujian.
Fitur khusus :
Isi Paket:
Komunikasi
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
| Product Name |
Eaton 9PX UPS
|
| Catalog Number |
9PX6KIRTN-L
|
| UPC | 786689772604 |
| Product Length/Depth | 685 mm |
| Product Height | 130 mm |
| Product Width | 440 mm |
| Product Weight | 35.8 kg |
| Warranty | 5 year |
| Compliances | CE Marked TUV cULus Listed CSA 22.2 |
| Certifications |
UL 1778
IEC/EN 62040-1 IEC/EN 62040-2 CE EAC |
| Model Code |
Eaton 9PX 6000i RT3U Netpack Li Ion
|
| Product specifications | |
| Topology |
Online/Double-conversion
|
| Form factor | Rack/tower |
| Rack size | 3U |
| Construction type |
482.6 mm (19 inch) device
|
| Color | Black/silver |
| VA rating | 6000 VA |
| Wattage | 5400 W |
| Rack mounting kit | Yes |
| Internal bypass | Yes |
| Hot swap power | No |
| Auto shutdown function | Yes |
| Primary frequency - max | 70 Hz |
| Primary frequency - min | 40 Hz |
| Input connection |
Hardwired/fixed connection
|
| Input nominal voltage |
230V default (200/208/220/230/240V)
|
| Nominal frequency | 50/60 Hz |
| Input frequency range | 40-70 Hz |
| Input power factor | >.99 |
| Receptacle |
(8) C13, (2) C19, Hardwired
|
| Number of output connections French standard (Type E) | 0 |
| Number of Outputs 5-15R | 0 |
| Number of Outputs 5-20R | 0 |
| Number of Outputs 6-15R | 0 |
| Number of Outputs 6-20R | 0 |
| Number of Outputs L14-30R | 0 |
| Number of Outputs L5-20R | 0 |
| Number of Outputs L5-30R | 0 |
| Number of Outputs L6-20R | 0 |
| Number of Outputs L6-30R | 0 |
| Number of Outputs C13 | 8 |
| Number of Outputs C19 | 2 |
| Number of outputs hardwired | 1 |
| Num of Outputs PC (SCHUKO) | 0 |
| Output waveform | Sine wave |
| Voltage | 230V |
| Output nominal voltage |
230V default (200/208/220/230/240V)
|
| Feed type | 1 |
| Voltage type | AC |
| Battery replacement |
Hot-swappable internal batteries and extended battery modules (EBMs)
|
| Battery rating | 6 Ah |
| Battery type | Lithium-ion |
| Extended battery capability | Yes |
| Runtime at half load | 15.5 min |
| Expansion slots |
One slot, network card included
|
| Ethernet interface | Yes |
| Includes network card | Yes |
| Software compatibility |
Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
|
| User interface |
Multilingual graphical LCD display
|
| Potential free switch contact | Yes |
| Altitude | 3000 m |
| BTU Rating | Online: 1105 |
| Noise level |
<45 dB at 1 meter
|
| Relative humidity |
0-95% non-condensing
|
| Temperature range |
0° to 40°C (32° to 104°F)
|
| Protocol | SNMP |
| Integrated functionality |
Network Mangement
|
| Input voltage - max | 276 V |
| Input voltage - min | 100 V |
| Output voltage - max | 240 V |
| Output voltage - min | 200 V |
| Secondary frequency - max | 60 Hz |
| Secondary frequency - min | 50 Hz |
| Battery quantity | 15 |
| Efficiency at max. load | 94 |
| Efficiency (eco-mode) | 98 |
| Input voltage range |
176-276 V (100-276 V with derating)
|
| Max number of battery packs | 6 |
| Output frequency | 50/60 Hz |
| Output power factor | 0.9 |
| Output voltage range |
200/208/220/230/240 V +/- 1%
|
| Phase (input) | 1 |
| Phase (output) | 1 |
| Runtime at full load | 3 min |
| Voltage distortion output (linear load) - max | 2 |
| Power consumption | 324 W |
