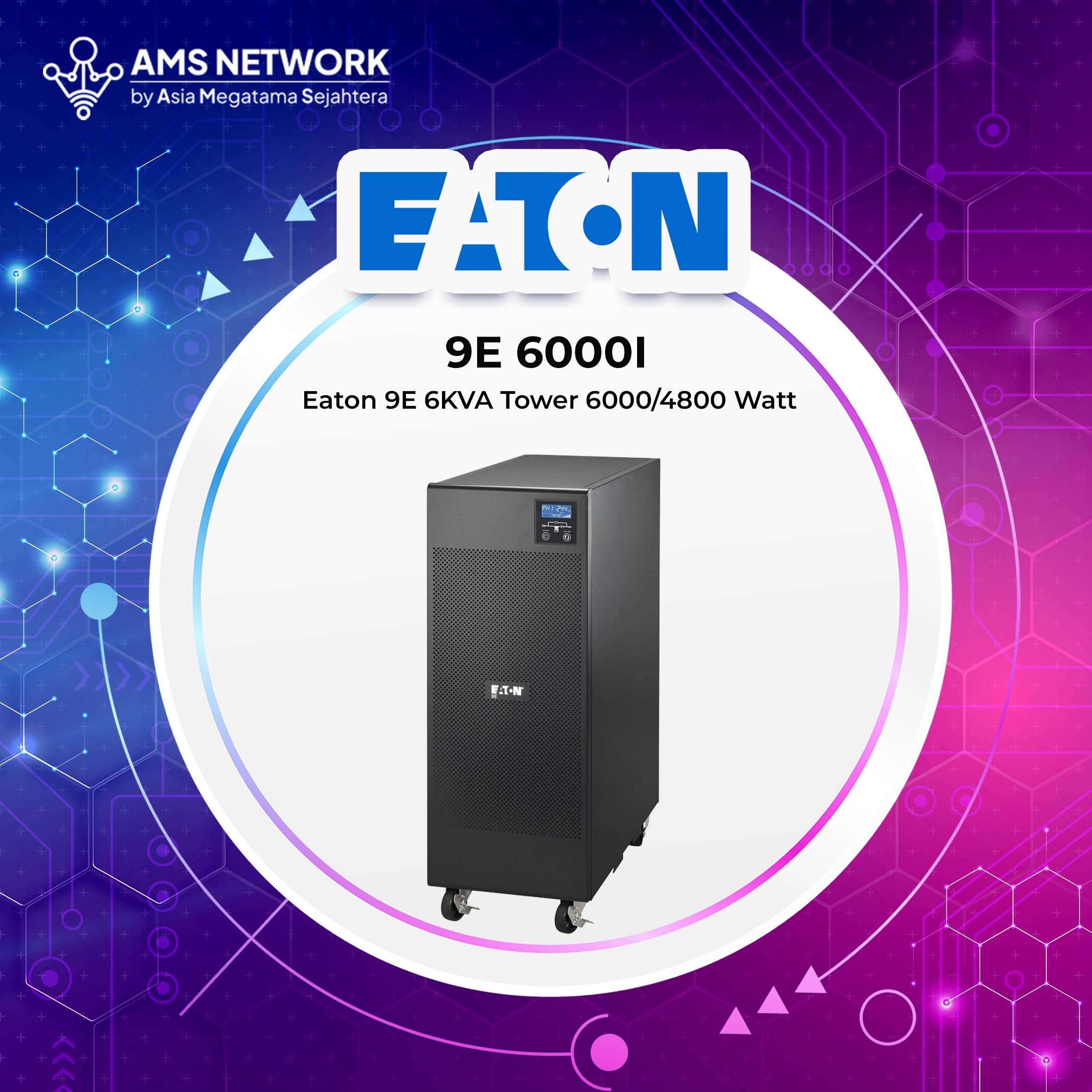

Eaton 9E 6000I adalah Uninterruptible Power Supply (UPS) dengan topologi Online Double-Conversion (Konversi Ganda Online) yang dirancang untuk memberikan perlindungan daya kualitas tinggi dan berkelanjutan untuk aplikasi kritis. Dengan kapasitas besar 6000 VA dan 4800 W, UPS ini ideal untuk melindungi infrastruktur IT, seperti server, pusat data kecil hingga menengah, peralatan jaringan, sistem telekomunikasi, dan aplikasi industri/medis yang sensitif.
Teknologi double-conversion memastikan beban (peralatan yang terhubung) selalu menerima daya listrik yang bersih dan stabil (Pure Sine Wave), sepenuhnya terisolasi dari gangguan listrik input (lonjakan, tegangan rendah, noise, dll.). Desainnya adalah Tower (berdiri bebas) dan dilengkapi dengan terminal hardwired untuk input dan output.
Fitur khusus:
Isi paket:
Eaton 9E UPS, 6000 VA, 4800 W, Input: Hardwired, Output: Hardwired, Tower
Product Name | Eaton 9E UPS |
Catalog Number | 9E6KI |
UPC | 743172067661 |
Product Length/Depth | 61.29 cm |
Product Height | 70.85 cm |
Product Width | 26.24 cm |
Product Weight | 68 kg |
Compliances | CE Marked TUV |
Certifications |
IEC/EN 62040-1
IEC/EN 62040-2 CE EAC |
Topology |
Online/Double-conversion
|
Form factor | Tower |
Construction type |
Free standing model
|
Color | Black |
VA rating | 6000 VA |
Wattage | 4800 W |
Rack mounting kit | No |
Internal bypass | Yes |
Hot swap power | No |
Auto shutdown function | Yes |
Primary frequency - max | 66 Hz |
Primary frequency - min | 45 Hz |
Input connection |
Hardwired/fixed connection
|
Input nominal voltage |
230V default (220/230/240V)
|
Nominal frequency | 50/60 Hz |
Input frequency range | 45-66Hz |
Input power factor | >.99 |
Number of outputs hardwired | 1 |
Output waveform | Sine wave |
Voltage | 230V |
Output nominal voltage |
230V default (220/230/240V)
|
Feed type | 1 |
Voltage type | AC |
Runtime graph | |
Battery management |
Automatic battery test
Deep discharge protection |
Battery replacement |
Replacable batteries
|
Battery rating | 12 V / 9 Ah |
Battery type |
Sealed, lead-acid
|
Extended battery capability | Yes |
Runtime at half load | 10 min |
Communication |
USB port (HID compliant)
Serial port (RS232) Mini-terminal block for remote power off Communication slot |
Expansion slots |
One slot for optional communication card
|
Ethernet interface | No |
Includes network card | No |
Software compatibility |
Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
|
User interface | LCD Display |
Type of interface | Other |
Potential free switch contact | Yes |
Altitude | 3000 m |
BTU Rating | Online: 1472 |
Noise level |
<55 dB at 1 meter
|
Relative humidity |
0-95% non-condensing
|
Temperature range |
0° to 40°C (32° to 104°F)
|
Input voltage - max | 276 V |
Input voltage - min | 110 V |
Output voltage - max | 240 V |
Output voltage - min | 220 V |
Secondary frequency - max | 60 Hz |
Secondary frequency - min | 50 Hz |
Battery quantity | 15 |
Efficiency at max. load | 91 |
Efficiency (eco-mode) | 96 |
Input voltage range |
176-276 V (110-276 V with derating)
|
Max number of battery packs | 4 |
Output frequency | 50/60 Hz |
Output power factor | 0.8 |
Output voltage range |
220/230/240 V +/- 2%
|
Phase (input) | 1 |
Phase (output) | 1 |
Runtime at full load | 8 min |
Voltage distortion output (linear load) - max | 3 |
Power consumption | 432 W |
Vendor | PT. ASIA MEGATAMA SEJAHTERA |
---|---|
Type | UPS |
Weight | 69.0 kg |
