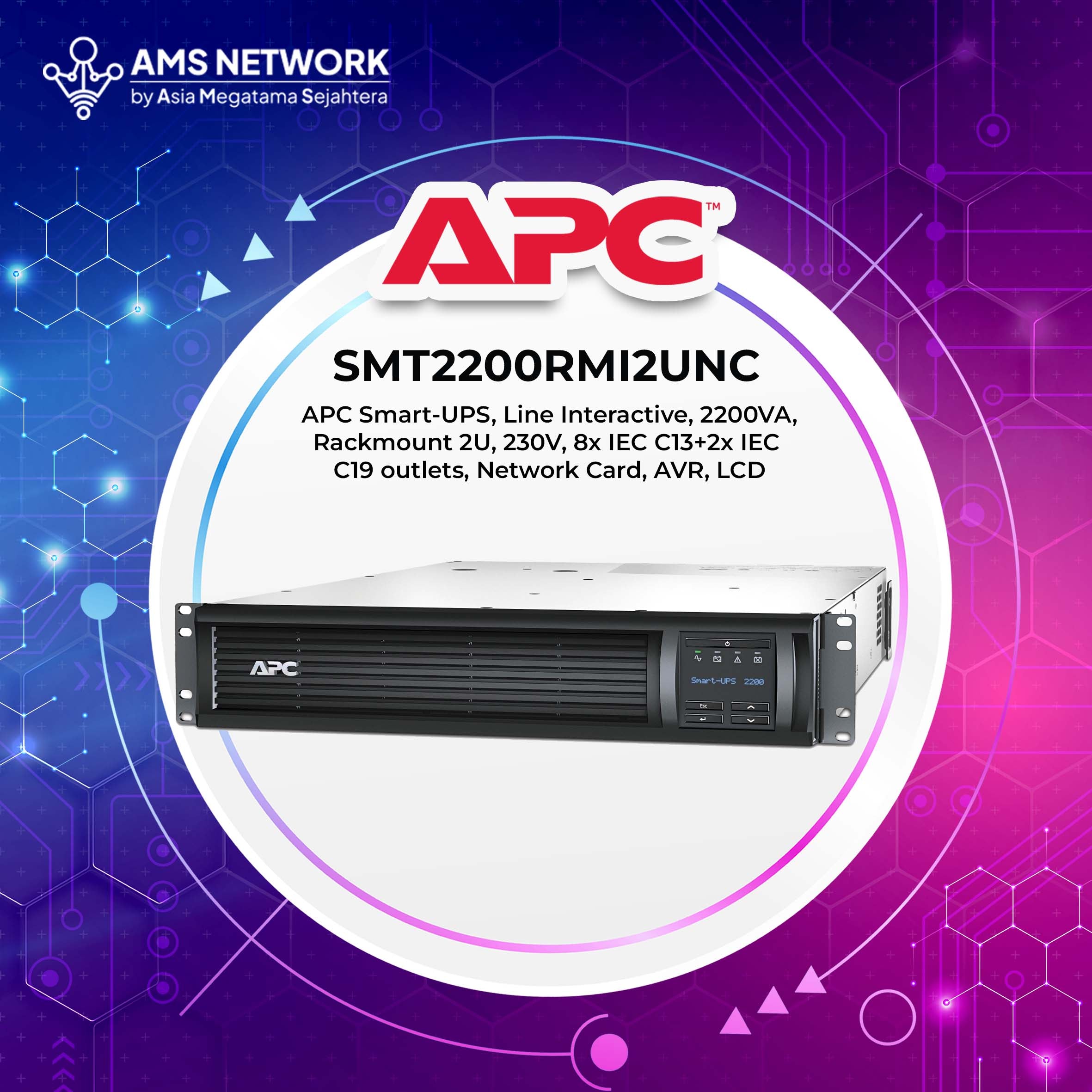

APC Smart-UPS SMT2200RMI2UNC adalah solusi Uninterruptible Power Supply (UPS) berkualitas tinggi, dirancang khusus untuk melindungi perangkat keras jaringan, server, dan peralatan IT kritis di lingkungan rak (rackmount) dan pusat data.
Unit ini menggunakan topologi Line-Interactive yang efisien, dilengkapi dengan fitur Automatic Voltage Regulation (AVR). AVR berfungsi untuk secara otomatis menaikkan (boost) atau menurunkan (trim) tegangan input yang fluktuatif tanpa perlu beralih ke daya baterai. Hal ini memperpanjang umur baterai dan menjaga tegangan output tetap stabil. Keunggulan lainnya:
APC Smart-UPS ini dirancang untuk profesional TI atau administrator jaringan untuk menjaga waktu aktif dan kontinuitas bisnis. UPS rak interaktif 2U berkapasitas 2200VA ini menyediakan daya gelombang sinus murni untuk mendukung perangkat elektronik penting selama gangguan daya. Dilengkapi dengan input IEC 320 C20, kabel input BS1363A British dan Schuko CEE 7/EU1-16P, 8 stopkontak IEC 320 C13 dan 1 stopkontak IEC 320 C19, serta 3 kabel jumper IEC. UPS ini juga dilengkapi Kartu Manajemen Jaringan prainstal untuk pemantauan dan manajemen berbasis jaringan UPS. UPS ini dilengkapi dengan PowerChute Network Shutdown yang memungkinkan penonaktifan server fisik, mesin virtual, dan klaster HCI secara lancar. UPS ini dapat terhubung ke EcoStruxure IT atau platform manajemen terpusat pihak ketiga. UPS ini memberikan proteksi lonjakan arus terhadap sambaran petir, penurunan daya, pemadaman listrik, dan lonjakan arus. UPS SMT bergaransi 3 tahun, dan baterai timbal-asam bawaannya bergaransi 2 tahun. UPS ini kompatibel dengan baterai khusus yang dapat diganti pengguna, dan kartrid baterai pengganti APC membantu mengembalikan kinerja UPS ke spesifikasi aslinya.
| Run-time untuk beban 1980 W Min-maks: 198-1980 W |
5mnt 27dtk |
| Kapasitas Maks. Digunakan | 100 % |
| Product or component type |
Uninterruptible power supply (UPS)
|
| Mounting mode |
Rack-mounted with included kit
|
| UPS connectivity |
Serial port
USB port Pre-installed network management card 3 |
| Battery type |
Lead-acid internal included
|
| Run-time | |
| Efisiensi | |
| Battery type |
Lead-acid battery
|
| Additional information |
Configurable for 220 : 230 or 240 nominal output voltage
|
| Extended runtime | 0 |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 3 h |
| Number of battery replacement quantity | 1 |
| Battery life | 3…5 year(s) |
| Replacement battery | RBC43 |
| Battery charger power | 169 W rated |
| Provided equipment |
CD with software
Documentation CD Installation guide Rack mounting hardware Rack mounting support rails Smart UPS signalling RS-232 cable Temperature probe USB cable |
| Number of power module | 0 |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| product web sub-family |
Network card pre-installed
|
| Redundant | No |
| Number of rack unit | 2U |
| Cable length | 2.00 m |
| Number of cables | 1 |
| Height | 86 mm |
| Width | 480 mm |
| Depth | 683 mm |
| Net weight | 42.22 kg |
| Mounting location | Front |
| Mounting preference | Lower |
| Mounting mode |
Rack-mounted
|
| Two post mountable | 0 |
| USB compatible | No |
| Main Input Voltage |
230 V AC 1 phase
|
| Other Input Voltage | 220 V 240 V |
| Input Connection Type |
BS1363A British
IEC 320 C20 Schuko CEE 7 / EU1-16P |
| Input voltage limits |
151...302 V adjustable
160...286 V |
| Network frequency |
50/60 Hz +/- 3 Hz auto-sensing
|
| Main Output Voltage |
230 V AC 1 phase
|
| Other Output Voltage | 220 V 240 V |
| Rated power in W | 1980 W |
| Rated power in VA | 2200 VA |
| output connection type |
8 IEC 320 C13
3 IEC Jumpers 1 IEC 320 C19 |
| Maximum configurable power in VA | 2200 VA |
| Maximum configurable power in W | 1980 W |
| Transfer time |
4 ms typical : 8 ms maximum
|
| UPS type |
Line interactive
|
| Wave type | Sine wave |
| Output frequency |
50/60 Hz +/- 3 Hz sync to mains
|
| Product certifications | CE EAC IRAM RCM VDE UK PSTI |
| Marking | GS Mark |
| Standards |
EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Acoustic level | 55 dBA |
| Heat dissipation | 215 Btu/h |
| Operating altitude | 0...10000 ft |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…15240 m |
| Relative humidity | 0…95 % |
| Storage Relative Humidity | 0…95 % |
| Control panel |
Multifunction LCD status and control console
|
| Emergency power off | Optional |
| Preinstalled device |
Network management card 3 with environmental monitoring
|
| Control panel |
LED status display with on line : on battery : replace battery and overload indicators
|
| Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays
|
| Surge energy rate | 375 J |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 25.4 cm |
| Package 1 Width | 98 cm |
| Package 1 Length | 60 cm |
| Package 1 Weight | 49.63 kg |
| Warranty |
3 years repair or replace (excluding battery) and 2 years for battery
|
| Vendor | PT. ASIA MEGATAMA SEJAHTERA |
|---|---|
| Type | UPS |
| Weight | 50.0 kg |
