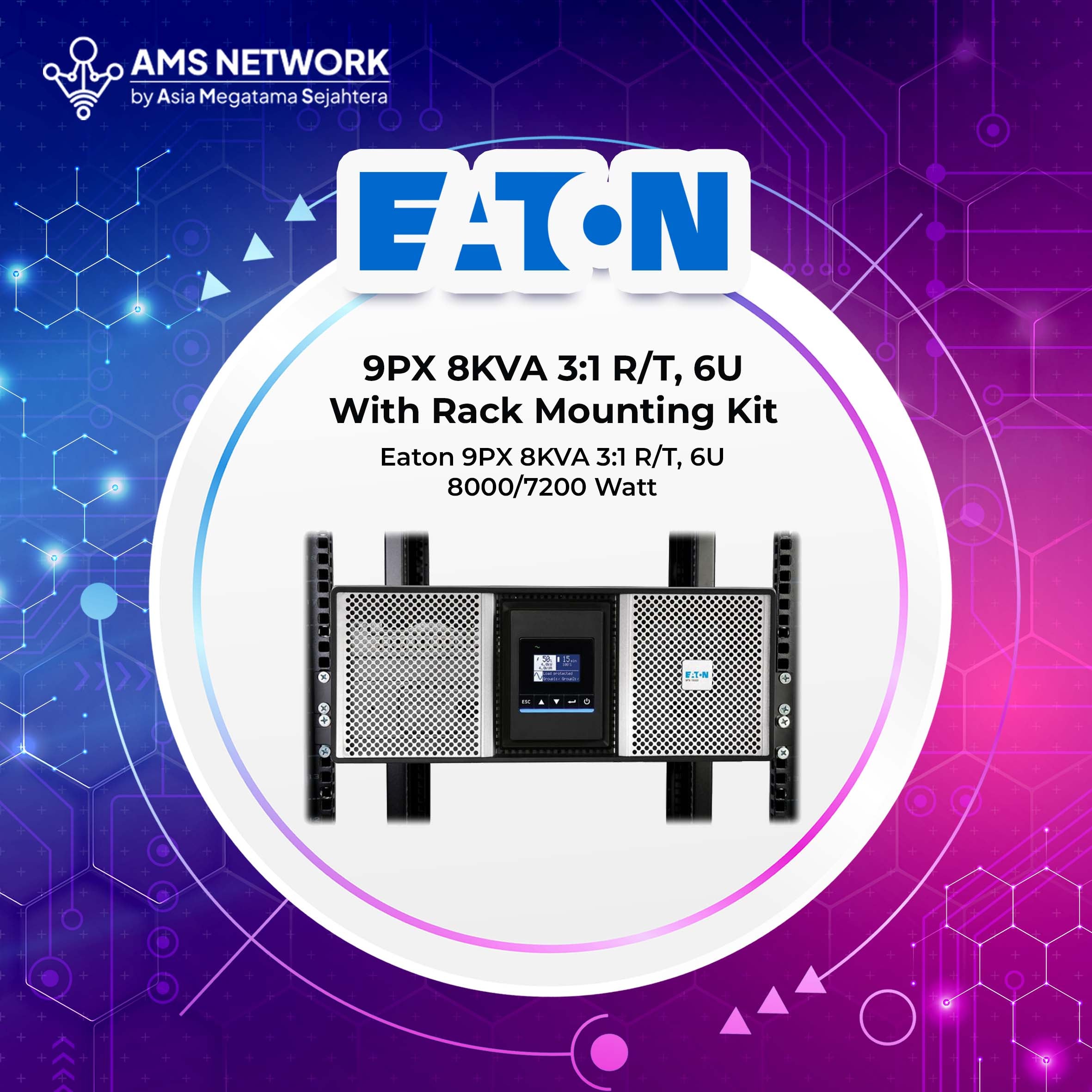

EATON 9PX 8KVA 3:1 R/T, 6U With Rack Mounting Kit - UPS 8000/7200 Watt - 9PX8KIRTNBP31

Rp 113.700.000,00 Rp 150.000.000,00
24
Atau lihat kebijakan pengiriman kami

Tax included. Shipping calculated at checkout.

100 in stock
Delivery:
Estimated delivery time: 5-7 days
Returns:
Within 45 days of purchase
Sku:
5
Payment & Security
Visa Mastercard American Express PayPal Diners Club Discover

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Note: Harga Belum Termasuk PPN 11%



EATON 9PX 8KVA 3:1 R/T, 6U With Rack Mounting Kit - 9PX8KIRTNBP31

    Fitur khusus:

    1. Topologi konversi ganda
    2. Memantau kondisi daya secara konstan dan mengatur tegangan serta frekuensi
    3. Menyediakan daya nyata (watt) yang lebih besar untuk melindungi lebih banyak peralatan dengan faktor daya 0,9
    4. Hemat energi, mengurangi biaya energi dan pendinginan
    5. Bypass internal memungkinkan kontinuitas layanan jika terjadi kerusakan UPS
    6. Layar LCD grafis generasi terbaru
    7. Kartu jaringan dan kit pemasangan rak disertakan sebagai standar
    8. Kompatibel dengan lingkungan virtual (VMware, Hyper-V, Citrix Xen, Redhat)
    9. Mengukur konsumsi energi (pada tingkat UPS)
    10. Operasi paralel menggunakan teknologi HotSync
    11. Baterai yang dapat ditukar saat panas (Hot swappable)

    Manajemen baterai :

    • ABM & Metode pengisian daya kompensasi suhu (dapat dipilih pengguna)
    • Uji baterai otomatis
    • Perlindungan pengosongan daya yang dalam
    • Pengenalan otomatis unit baterai eksternal

    Kelengkapan Komunikasi :

    - Port USB (sesuai HID)
    - Port serial (RS232)
    - Blok terminal mini untuk On/Off jarak jauh
    - Blok terminal mini untuk mematikan daya jarak jauh
    - Kontak kering (4 keluaran, relai, DB9)
    - Kartu jaringan

    Isi paket :

    1. Modul Daya
    2. Modul baterai tambahan (EBM)
    3. Bypass Pemeliharaan
    4. Kartu Manajemen Jaringan
    5. (2) braket untuk pemasangan 19 kaki
    6. (2) Kit pemasangan rak
    7. Kabel USB
    8. Kabel serial
    9. Kabel baterai dengan komunikasi untuk pengenalan kabinet baterai otomatis
    10. (2) Penyangga untuk pemasangan menara
    11. Pelat penghubung
    12. Petunjuk keselamatan
    13. Panduan memulai cepat



    Spesifikasi UPS 9PX 8KVA 3:1 R/T, 6U

    Eaton 9PX UPS 3:1 HotSwap Netpack, 8 kVA, 7.2 kW, Input: Hardwired, Outputs: (4) C19, Hardwired, Rack/tower, 6U, Network card included

    Product Name
    Eaton 9PX UPS
    Catalog Number
    9PX8KIRTNBP31
    UPC 743172045263
    Product Length/Depth 70 cm
    Product Height 26 cm
    Product Width 44 cm
    Product Weight 88 kg
    Compliances CE Marked
    TUV
    Certifications
    IEC/EN 62040-1
    IEC/EN 62040-2
    CE
    EAC
    Model Code
    Eaton 9PX 8000i 3:1 RT6U HotSwap Netpack
    Warranty 3 years
    Runtime graph
    Battery replacement
    Hot-swappable battery modules
    Battery quantity 20
    Battery rating 12 V / 9 Ah
    Battery type
    Sealed, lead-acid
    Extended battery capability Yes
    Electrical output
    Receptacle
    (4) C19, Hardwired
    Topology
    Online/Double-conversion
    Wattage 7.2 kW
    VA rating 8 kVA
    Output waveform Sine wave
    Voltage 400V
    Output power factor 0.9
    Output nominal voltage
    230V default (200/208/220/230/240/250V)
    Output voltage range
    200/208/220/230/240/250 V +/- 1%
    Voltage distortion output (linear load) - max 2
    Output frequency 50/60 Hz
    Feed type 2
    Electrical input
    Input connection
    Hardwired/fixed connection
    Input nominal voltage
    400V default (380/400/415V)
    Input voltage range 305-480 V
    Nominal frequency 50/60 Hz
    Input frequency range 40-70 Hz
    Input power factor >.99
    Communications
    Expansion slots
    One slot, network card included
    Ethernet interface Yes
    Includes network card Yes
    Software compatibility
    Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
    User interface
    Multilingual graphical LCD display
    Type of interface Other
    Potential free switch contact Yes
    Environmental
    Altitude 3000 m
    BTU Rating Online: 1472
    Noise level
    <48 dB at 1 meter
    Relative humidity
    0-95% non-condensing
    Temperature range
    0° to 40°C (32° to 104°F)
    Additional specifications
    Form factor Rack/tower
    Rack size 6U
    Construction type
    482.6 mm (19 inch) device
    Rack mounting kit Yes
    Efficiency at max. load 95
    Phase (input) 3
    Phase (output) 1
    Internal bypass Yes
    Hot swap power Yes
    Auto shutdown function Yes
    Vendor AMS Network
    Type UPS
    Sku 5
    Weight 85.0 kg
